51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicles with head airbags:
Read and comply with SAFETY REGULATIONS for working on vehicles with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove the trim panels (risk of damage to head airbag).

REMOVAL:

Remove protective cap (1) and release screw underneath.

Remove trim panel (2).

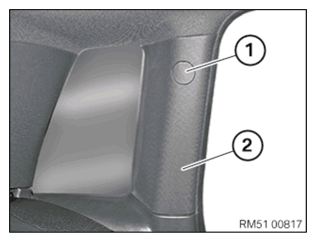

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Install trim panel (2).

Tighten screw on trim panel (2) and install the protective cap (1).

Tightening torque 51 43 2AZ .

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
