51 23 265 Removing and installing/replacing left or right gas spring for engine compartment lid

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Injury hazard!
Use suitable tool to support hood in the fully opened position.

Removal:

Make a written record of the installation position of the gas springs before removing.

If necessary, release cable bracket on gas spring (2).

Slide retaining spring (1) to end of gas spring (2) and lift off gas spring (2) from ball head.

Repeat procedure at other end of gas strut (2).

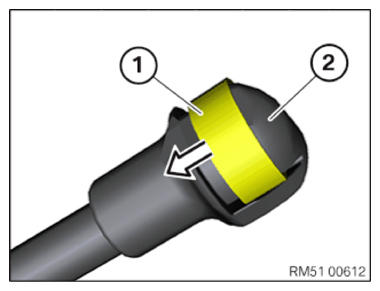

Fig 1: Sliding Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide retaining spring (1) back into initial position.

Press the gas spring (2) onto the ball hubs on the vehicle at the top and bottom end.

Gas spring (2) must be felt to engage.

Fig 2: Pressing Gas Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.
