51 23 131 Removing and installing/replacing striker on engine compartment lid

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Loosen the locks (1) and remove the cover (2).

Unscrew striker (3).

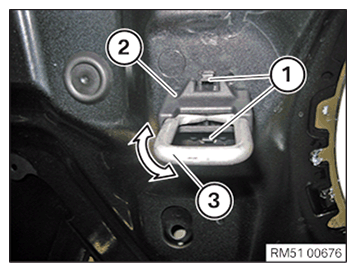

Fig 1: Loosening Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw in striker (3).

Mount cover (2).

Make sure the locks (1) engage.

Fig 2: Loosening Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Adjusting ENGINE COMPARTMENT LID
