51 44 152 Removing and installing/replacing front roofliner cover

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Open roller sunblind.

Unclip trim (1) from frame all round and remove.

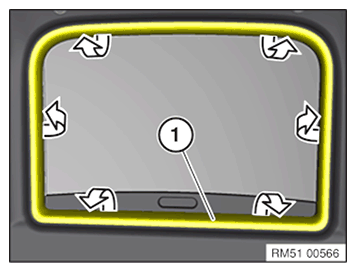

Fig 1: Removing Trim From Frame
G11649359Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in trim (1) on frame.

When doing this, make sure trim (1) is correctly fitted on roofliner.

Fig 2: Clipping Trim On Frame
G11649360Courtesy of BMW OF NORTH AMERICA, INC.
