51 32 211 Removing and installing/replacing rubber window seal for front left or right side window

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

IMPORTANT: The INSTRUCTIONS ON INSTALLATION OF RUBBER WINDOW SEALS  serve as the basis for these repair instructions and must be observed without fail.

Removal:

Carefully lever out and remove triangular trim (1).

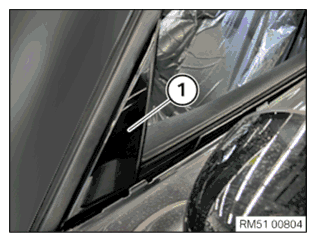

Fig 1: Removing Triangular Trim
G11788683Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber window seal (1) sideways from door window frame.

Pull out rubber window seal (1) from window guide rail and remove.

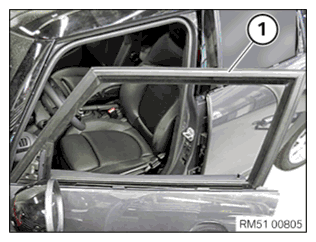

Fig 2: Pulling Out Rubber Window Seal From Window Guide Rail
G11788684Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert rubber window seal (1) into the window guide rail.

Mount rubber window seal (1) on door window frame.

Fig 3: Pulling Out Rubber Window Seal From Window Guide Rail
G11788684Courtesy of BMW OF NORTH AMERICA, INC.

Carefully mount triangular trim (1).

Fig 4: Removing Triangular Trim
G11788683Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
