51 21 330 Removing and installing/replacing window channel strip on inner front door

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove FRONT DOOR TRIM PANEL

The "INSTRUCTIONS ON INSTALLATION OF WINDOW GUIDES " serve as the basis for this repair instructions and must be observed without fail.

IMPORTANT: Risk of damage!
If window channel strip is reused, make sure it is not bent.

Removal:

Release window channel strip (1) from holders (2) and detach upwards.

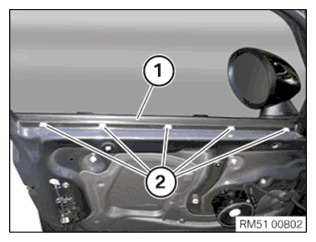

Fig 1: Removing Window Channel Strip From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window channel strip (1) prior to installation with APPROVED LUBRICANT .

If necessary, remove clamps (2) from window channel strip and attach to door.

Replace faulty clamps.

Connect window channel strip (1) to door and engage in holders (2).

Fig 2: Removing Window Channel Strip From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install FRONT DOOR TRIM PANEL
