51 13 396 Removing and installing/replacing door pillar cover (outside B-pillar)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Unscrew the screws (1).

Unclip the trim panel (2) from the clip (3) and remove.

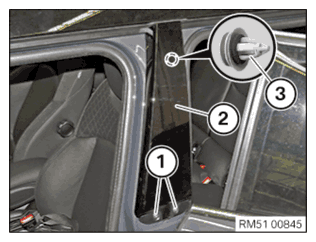

Fig 1: Removing Trim Panel From Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the trim panel (2) and clip into clip (3).

NOTE: If necessary, replace faulty clip (3).

Tighten down screws (1).

Tightening torque 51 13 7AZ .

Fig 2: Removing Trim Panel From Clip

Courtesy of BMW OF NORTH AMERICA, INC.
