51 13 375 Removing and installing/replacing cover on left or right rear roof pillar (D-pillar)
WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Preliminary work needed:
- Remove STRIP ON SIDE WINDOW
Removal:
IMPORTANT:
Risk of damage!
Ensure temperature equalization; covers which are too cold can be damaged during disassembly.

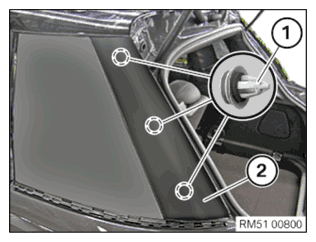

Position special tool 00 9 325 as closely as possible to the clips (1) and lever out trim (2) by means of a short and strong jerk.
Ensure temperature equalization; covers which are too cold can be damaged during disassembly.
Position special tool 00 9 325 as closely as possible to the clips (1) and lever out trim (2) by means of a short and strong jerk.
Installation:
Clip in trim (2) into the clips (1).
Required reworking:
- Mount STRIP ON SIDE WINDOW
