51 13 106 Removing and installing/replacing trim (wheel arch) at rear door, left or right

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Do not scratch or damage visible surfaces.

Removal:

Lever out rubber covers (1) and release screw underneath.

Release wheel arch trim (2) from clips (3) by means of special tool 00 9 325 and remove.

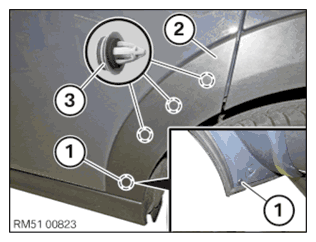

Fig 1: Releasing Wheel Arch Trim From Clips Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The clips (3) must not be damaged or missing.

Position wheel arch trim (2) and engage in clips (3).

Tighten screw and secure rubber covers (1).

Fig 2: Releasing Wheel Arch Trim From Clips Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.
