51 13 105 Removing and installing/replacing trim on rear left or right wheel arch

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Release trim (1) from clips (2 and 3).

Release trim (1) in area (4) and remove trim.

If necessary, unlock associated plug connection and disconnect.

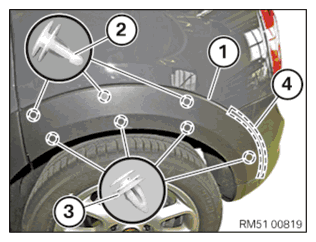

Fig 1: Releasing Trim From Clips (2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing with USA national version:

Remount SIDE MARKER LIGHT .

INSTALLATION:

NOTE: Check clips (2 and 3) of trim panel (1) and the corresponding grommets from damage and replace if necessary.
Retaining lugs (4) on trim panel (1) must not be damaged.

Fig 2: Checking Trim Panel Clips (2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, connect the corresponding plug connection.

Engage trim (1) in area (4).

Engage trim (1) in clips (2 and 3).

Fig 3: Releasing Trim From Clips (2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.
