51 13 015 Removing and installing/replacing trim ring for left or right headlight

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Release catches (1).

Remove trim ring.

Installation note:

Detents (1) must not be damaged.

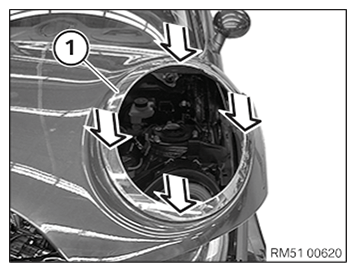

Fig 1: Removing Trim Ring Catches

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Engage trim ring (1).

Fig 2: Engaging Trim Ring

Courtesy of BMW OF NORTH AMERICA, INC.
