51 71 447 Detaching and attaching/replacing trim panel for left or right door sill

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove TRIM ON TRIM PANEL FOR COVER ON SIDE MEMBER in front and rear
Partly release TANK COVER .

Removal:

Release expanding rivet (1).

Remove clips (2).

Remove screw (3).

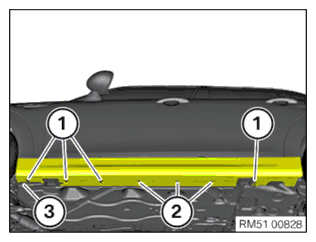

Fig 1: Releasing Expanding Rivet

G11788891

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Doors hidden for purposes of clarity.

Release fixtures (1 and 2).

Unclip door sill trim panel (3) sideways from the clips and remove.

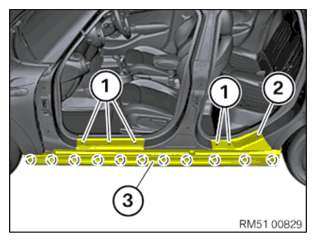

Fig 2: Removing Door Sill Trim Panel Sideways From Clips

G11788892

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty clips (1 to 3).

Fig 3: Replacing Faulty Clips (1 To 3)

G11788893

Courtesy of BMW OF NORTH AMERICA, INC.

Open doors.

Position trim panel (3) and engage in clips.

Mount clips (1 and 2).

Fig 4: Removing Door Sill Trim Panel Sideways From Clips

G11788892

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace faulty expanding rivets (1 and 2).

Tighten expanding rivet (1) and screw (3).

Mount clips (2).

Fig 5: Releasing Expanding Rivet

G11788891

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install TRIM ON TRIM PANEL FOR COVER ON SIDE MEMBER in front and rear
Install TANK COVER
