51 14 012 Removing and installing/replacing rear MINI plate

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

Removal:

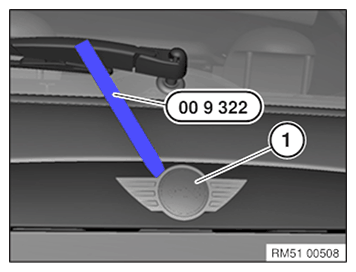

Heat MINI plaque (1) with hot air blower and carefully lever out with special tool 00 9 322 .

Fig 1: Removing Air Blower Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

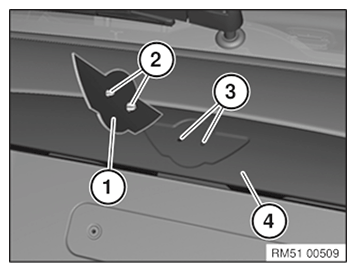

Detach the Liner* from the adhesive tape (1) and place the MINI plaque over the guide pins (2) in the bores (3) of the trunk lid handle (4) and press down firmly.

* Liner is the protective film on a new MINI plaque.

Fig 2: Detaching Liner From Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.
