51 11 158 Replacing base plate for number/license plate: Notes

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Only use the vehicle-specific number plate baseplate.

The installation of other license plate baseplates is not permissible.

Refer to LICENSE PLATE ATTACHMENT AT FRONT .

The license plate must be mounted exactly on the number plate baseplate.

If a number plate baseplate is not offered for the corresponding national-market version, the license plate must be mounted directly on the bumper using a drilling template

Incorrect assembly leads to a malfunction of the sensors of the driver assist systems.

NOTE: Schematic diagram shown on example of F56 MINI Cooper S national-market version USA.
There may be differences in detail in the case of other versions.

Removal:

Unscrew the screws (1).

Remove holder (2) towards front.

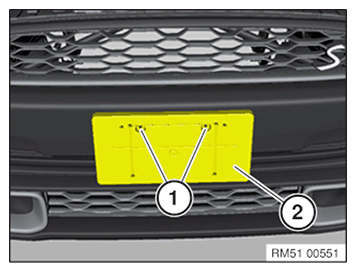

Fig 1: Removing Holder Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position support (2).

Tighten down screws (1).

NOTE: For initial installation on new bumper cover, pre-drill marks on bumper.

Fig 2: Removing Holder Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.
