61 71 030 Removing and installing/replacing all spray nozzles of windshield washer system

Preliminary work needed:

• If necessary, remove DAMPING LAYER ON ENGINE COMPARTMENT LID

Removal:

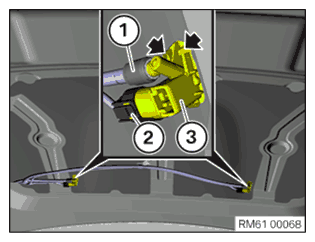

Removing the spray nozzle:

Unlock and disconnect hose (1).

Unlock and disconnect plug (2) as required.

Release the retaining lugs and feed the spray nozzle (3) out from the hood.

Fig 1: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

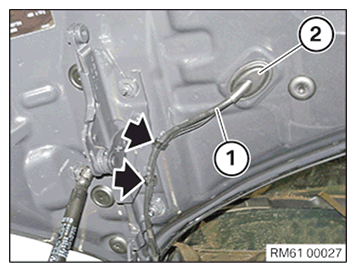

Removing the hose pipe:

Unclip the hose pipe(1).

Release the hose connector (2) and feed the hose pipe (1) out.

Fig 2: Releasing Hose Connector

Courtesy of BMW OF NORTH AMERICA, INC.

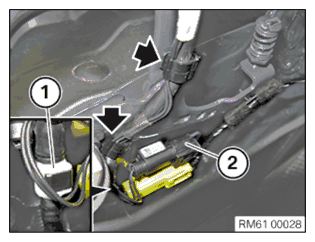

Removing the hose pipe:

Unlock and disconnect the hose pipe from the connector (1).

Feed the hose pipe out.

Unlock and disconnect plug (2) as required.

If necessary, feed out cable.

Fig 3: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

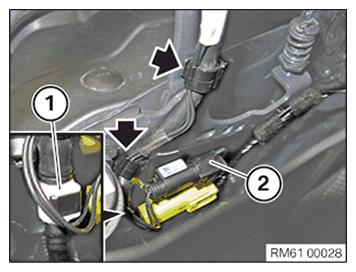

Installing the hose pipe:

Feed the hose pipe in.

Connect and lock the hose pipe on the connector (1).

If necessary, feed in cable.

If applicable, connect the connector (2).

Fig 4: Locking Hose Pipe On Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the hose pipe:

Feed the hose pipe (1) in and fit the hose connector (2).

Clip in the hose pipe (1).

Fig 5: Releasing Hose Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the spray nozzle:

Join spray nozzle (3) in engine compartment lid.

Connect hose (1).

If applicable, connect the connector (2).
