61 35 953 Removing and installing/replacing interior antenna for Comfort Access (front storage compartment)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove complete CENTER CONSOLE

Removal:

Release detents on holder.

Remove interior antenna for Comfort Access (1) from holder.

Unlock and disconnect connector (2).

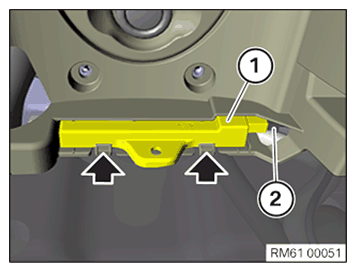

Fig 1: Removing Interior Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (2).

Join interior antenna for Comfort Access (1) in holder.

Installation note:

Ensure interior antenna for Comfort Access (1) engages correctly in holder.

Fig 2: Removing Interior Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
