41 14 504 Replacing rear right outer wheel arch section (rear quarter panel removed)
WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Refer to the repair instructions "REAR LEFT OUTER WHEEL ARCH SECTION" and carry over schematically to the vehicle.

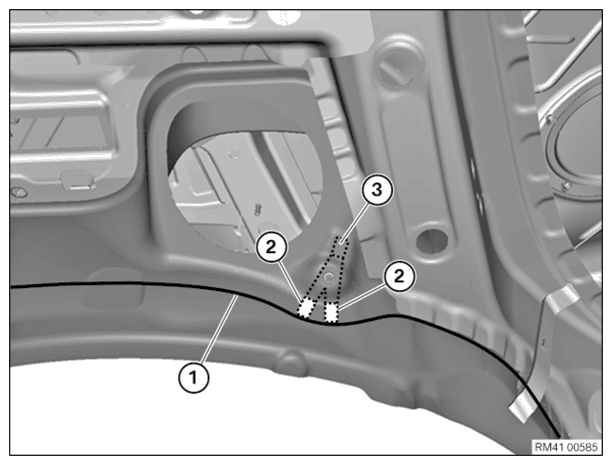

Modified severance cut procedure in the fuel filler pipe area:
(1) = severance cut
NOTE:
Adjust the new part in the areas (2) of the holder (3). (set down)
