12 51 235 Replacing the engine sensor system module 1 wiring harness section (B36, B38)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove left LEFT COWL PANEL COVER .
Disconnect BATTERY NEGATIVE LEAD .
Remove INTAKE PLENUM .
Remove FAN COWL .
Remove FRONT UNDERBODY PROTECTION .

Removal:

Release expanding rivet and remove mounting for gasket (1).

Fig 1: Locating Expanding Rivet With Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw and remove tension strut (1).

Fig 2: Locating Tension Strut Screws

Courtesy of BMW OF NORTH AMERICA, INC.

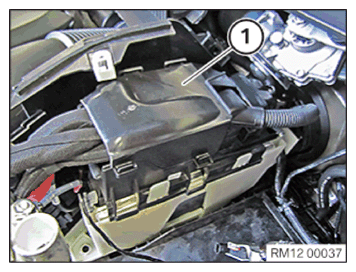

Unclip and remove cover (1).

Fig 3: Battery Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect all connectors (1) on control unit.

Fig 4: Control Unit Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Remove partition wall (1).

Fig 5: Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Overview Of Engine Sensor System Module 1 Wiring Harness Section

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect following connectors and lines	Note
Unlock and disconnect connector from DME control unit
Unlock and disconnect connector from knock sensor
Unlock and disconnect connector from charging pressure sensor on intake plenum
Unlock and disconnect connector from throttle valve
Unlock and disconnect connector from charging pressure sensor upstream of throttle valve
Unlock connector on crankshaft sensor and disconnect
Unlock and disconnect connector from gear sensor
Unlock connector on oil pressure sensor and disconnect
Unlock connector on solenoid valve and pull off.
Unlock connector on air conditioning compressor and disconnect
Unlock and disconnect connector from thermostat
Unlock connector on coolant temperature sensor and disconnect
Unlock connector on tank vent valve and disconnect
Unlock connector on oil level sensor and disconnect

Release wiring harness from clips and retainers.

Feed out wiring harness and remove.

Installation:

Route and install wiring harness.

Plug in all connectors as specified in table.

All connectors must audibly engage.

Join tension strut (1) and tighten with screws.

Tightening torque 61 21 5AZ .

Fig 7: Locating Tension Strut Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Join mounting for gasket (1) and secure with expanding rivet.

Fig 8: Locating Expanding Rivet With Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Install partition wall (1).

Fig 9: Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Connect all connectors (1) to control unit.

All connectors (1) must engage audibly.

Installation note:

Connect connectors from front to rear.

Fig 10: Control Unit Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Fig 11: Battery Cover

Courtesy of BMW OF NORTH AMERICA, INC.
