11 37 010 Removing and installing/replacing intermediate levers (B36A/B38A)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Risk of damage in event of incorrect use.

Necessary preliminary tasks:

Remove INTAKE PLENUM
Remove CYLINDER HEAD COVER
Remove front right WHEEL ARCH COVER

Removal:

NOTE: Special tool 2 359 088 consists of two parts:

Torsion spring clamping lever
Fixture (fitting aid) for clamping lever

Fig 1: Special Tool (2 359 088)

Courtesy of BMW OF NORTH AMERICA, INC.

Fix intake camshaft with an open-end spanner (1).

Release screw (2).

Remove sensor wheel (3).

Fig 2: Securing Intake Camshaft With Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly adjust eccentric shaft (1) to minimum stroke via servomotor using 4 mm hexagon socket wrench (2).

Fig 3: Adjusting Eccentric Shaft To Minimum Stroke Via Servomotor Using Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

The cam (1) of the intake camshaft must not contact on the intermediate lever when removing the torsion spring.

Rotate engine further as necessary with special tool 11 6 480 .

IMPORTANT: Do not crank engine in reverse direction!

Fig 4: Cam Of Intake Camshaft Must Not Contact Intermediate Lever When Removing Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 359 088 on torsion spring (1).

IMPORTANT: The special tool must lie flat on the cylinder head.

Fig 5: Positioning Special Tool (2 359 088) On Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Both torsion springs (1) on the left and right must be positioned in the lateral guide of special tool 2 359 088 .

Fig 6: Positioning Torsion Springs In Lateral Guide Of Special Tool (2 359 088)

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT:

Improper handling. Risk of damage!

Preload return spring with lever (1) on special tool 2 359 088 in direction of arrow.

Fig 7: Preloading Return Spring With Lever On Special Tool (2 359 088)

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 2 359 088 with catch on lever (1).

Fig 8: Locking Special Tool (2 359 088) With Catch On Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift special tool 2 359 088 .

Feed special tool 2 359 088 with torsion spring (1) out of cylinder head (2).

Fig 9: Feeding Special Tool (2 359 088) With Torsion Spring Out Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

Clamping lever (1) is preloaded.

IMPORTANT:

Improper handling. Risk of damage!

Secure fixture (2) for clamping lever in vice.

Position clamping lever (1) with torsion spring in fixture (2).

Carefully unlock and slowly open clamping lever (1).

Remove torsion spring.

Fig 10: Fixture And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Set down all torsion springs neatly in special tool 11 4 480 .

Release screw (1) of gate (2).

Place all gates (2) in neat order in special tool 11 4 480 .

Fig 11: Locating Screw Of Gate

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all intermediate levers (1).

Place all intermediate levers (1) in neat order in special tool 11 4 480 .

Fig 12: Removing Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Before installing intermediate levers, make sure rocker arms (1) are correctly positioned (risk of damage) .

Fig 13: Locating Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

IMPORTANT:

All intermediate levers are classified.

All intermediate levers must be reinstalled in the same positions in an engine which has already been in use.

Intermediate levers are classified from 1 to 5.

Only one classification may be fitted per engine.

Fig 14: Intermediate Lever Classification

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all intermediate levers (1).

Fig 15: Removing Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

IMPORTANT: All contact surfaces (1) of gates must be clean and free from oil and grease. If necessary, clean contact surfaces (1).

Fig 16: Intake Camshaft Bearing Cap Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Mount gate (2) neatly.

Tighten screw (1) hand-tight.

Check that intermediate levers are in correct installation position.

Fig 17: Locating Screw Of Gate

Courtesy of BMW OF NORTH AMERICA, INC.

Position the special tool 2 359 089 on the cylinder head.

Pre-tension the gate with the lever (3).

Abut the screw (1) in the area (2).

Make sure that the special tool 2 359 089 does not rotate during this process.

Fig 18: Positioning Special Tool (2 359 089) On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

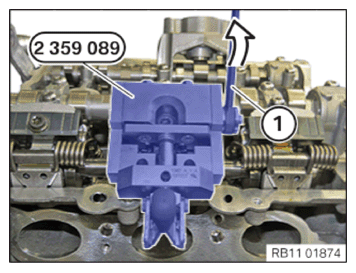

Secure the gate with the lever (1) in the direction of arrow.

Fig 19: Securing Gate With Lever

Courtesy of BMW OF NORTH AMERICA, INC.

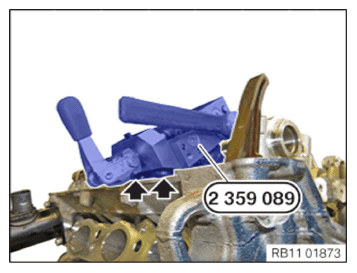

IMPORTANT: Special tool 2 359 089 must lie flat on the cylinder head.

Fig 20: Installing Special Tool (2 359 089) On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

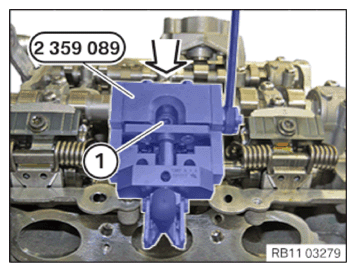

Press the special tool 2 359 089 onto the cylinder head.

Tighten the screw (1) at the same time.

Tightening torque 11 37 1AZ .

Fig 21: Pressing Special Tool (2 359 089) Onto Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tool 2 359 088 consists of two parts:

Torsion spring clamping lever
Fixture (fitting aid) for clamping lever

Fig 22: Special Tool (2 359 088)

Courtesy of BMW OF NORTH AMERICA, INC.

Clamp special tool (2) in vice.

Engage torsion spring (3) in clamping lever (1).

Fig 23: Engaging Torsion Spring In Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Danger of injury!

Make sure torsion spring (3) is correctly positioned in clamping lever (1).

Fig 24: Positioning Torsion Spring In Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Both torsion springs (1) on the left and right must be positioned in the lateral guide of special tool 2 359 088 .

Ensure correct engagement of clamping lever.

Fig 25: Positioning Torsion Springs In Lateral Guide Of Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Lift clamping lever (1) with torsion spring out of fixture (2).

Fig 26: Lifting Clamping Lever With Torsion Spring Out Of Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 2 359 088 with torsion spring (1) into cylinder head (2).

Fig 27: Feeding Special Tool (2 359 088) With Torsion Spring Out Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Engage torsion spring (2) in intermediate lever (1).

Check that all rocker arms (3) are in correct installation position.

Fig 28: Engaging Torsion Spring In Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Clamping lever (1) must be lying flat on cylinder head.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT:

Improper handling. Risk of damage!

Carefully unlock clamping lever (1).

Check torsion spring on intermediate lever to ensure correct installation position.

Fig 29: Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure correct position of torsion spring in recess on cylinder head.

Fig 30: Positioning Torsion Spring In Recess On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Fix intake camshaft with an open-end spanner (1).

Position sensor wheel (3).

Tighten down screw (2).

Tightening torque 11 31 2AZ .

Fig 31: Securing Intake Camshaft With Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.
