11 14 200 Detaching and attaching/replacing timing case cover on front at bottom (B36A/B38A)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Engines with surface sealant:

Application time of sealing compound maximum 12 min.

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION
Remove VIBRATION DAMPER .
Remove BELT TENSIONER for alternator.

Removal:

Loosen screws (1).

Fig 1: Locating Screws

G11671240

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unfasten screws (2).

Remove timing case cover.

Fig 2: Locating Timing Case Cover Screws

G11671282

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean sealing surfaces with special tool 11 4 471 .

IMPORTANT: Application time of sealing compound maximum 12 min.

Sealing compound height approximately 2 - 2.5 mm.

Apply SEALING COMPOUND (2.2) as shown.

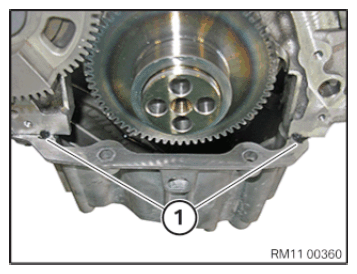

Fig 3: Sealing Compound Application Area

G11671283

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble special tool 2 357 900 as shown.

Fig 4: Special Tool (2 357 900)

G11671284

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Do not use engine oil or lubricant.

Special tool must be resting on timing case cover (1).

Carefully push special tool 2 357 900 through sealing ring into timing case cover and abut.

Remove fitting aid (2).

Fig 5: Pushing Special Tool (2 357 900) Through Sealing Ring Into Timing Case Cover

G11671285

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 2 357 900 with timing case cover (1) on crankshaft hub (2).

Fig 6: Fitting Special Tool (2 357 900) With Timing Case Cover On Crankshaft Hub

G11671286

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pay attention to both guide pins (2).

Mount timing case cover (1) on crankcase in direction of arrow.

Abut screws.

Fig 7: Mounting Timing Case Cover On Crankcase

G11671287

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Dust lip (1) must be facing outwards.

Remove special tool 2 357 900 .

Check installation position of dust lip.

Fig 8: Locating Dust Lip

G11671288

Courtesy of BMW OF NORTH AMERICA, INC.

Abut screws (2) crosswise.

Abut screws (1).

Tighten the screws (2) crosswise.

Tightening torque 11 14 1AZ .

Tighten down screws (1).

Tightening torque: 11 13 2AZ .

Fig 9: Locating Timing Case Cover Screws

G11671282

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 61 3AZ .

Fig 10: Locating Screws

G11671240

Courtesy of BMW OF NORTH AMERICA, INC.
