11 53 090 Removing and installing/replacing the auxiliary coolant pump (B36A/B38A)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Drain COOLANT

Removal:

NOTE: Illustration shows B48 A.

Release screw (1).

Pull the auxiliary coolant pump (2) slightly forwards.

Fig 1: Locating Auxiliary Coolant Pump And Screw

G11645390

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1) of the auxiliary coolant pump.

Fig 2: Locating Auxiliary Coolant Pump Connector

G11645391

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock coolant hose (1) and pull off of auxiliary coolant pump.

Fig 3: Locating Coolant Hose

G11645392

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock coolant hose (1) and pull off of auxiliary coolant pump (2).

Remove auxiliary coolant pump (2).

Fig 4: Auxiliary Coolant Pump And Coolant Hose

G11645393

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Illustration shows B48 A.

Install auxiliary coolant pump (1).

Connect coolant hose (2) to auxiliary coolant pump (1).

NOTE: The coolant hose (2) must engage audibly.

Fig 5: Auxiliary Coolant Pump Hose

G11645394

Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant hose (1) to auxiliary coolant pump.

NOTE: The coolant hose (1) must audibly engage.

Fig 6: Auxiliary Coolant Pump Hose

G11645392

Courtesy of BMW OF NORTH AMERICA, INC.

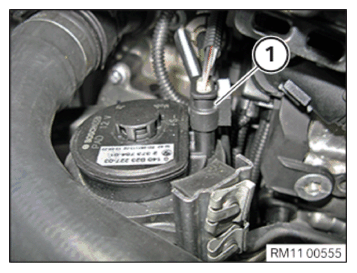

Connect the connector (1).

Fig 7: Auxiliary Coolant Pump Connector

G11790345

Courtesy of BMW OF NORTH AMERICA, INC.

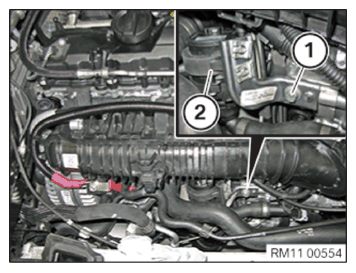

NOTE: Illustration shows B48 A.

Fasten auxiliary coolant pump with screw (1).

Tightening torque 11 51 4AZ .

Fig 8: Auxiliary Coolant Pump With Screw

G11790346

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Add COOLANT
Check cooling system for leaks
