11 33 050 Removing and installing/replacing all rocker arms (B36A/B38A)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480

Necessary preliminary tasks:

Remove INTAKE CAMSHAFT
Remove EXHAUST CAMSHAFT .

IMPORTANT:

Roller cam followers on intake side are subdivided into bearing classes.

Already used roller cam followers may only be reused in the same position.

Removal:

Release roller cam followers (1) on intake side from hydraulic valve clearance compensating elements and remove.

Place all roller cam followers in order in special tool 11 4 480 .

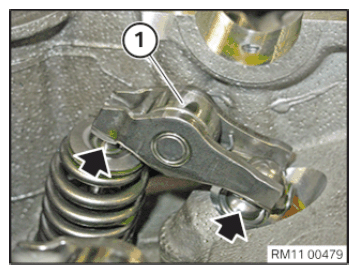

Fig 1: Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Release roller cam followers (1) on exhaust side from hydraulic valve clearance compensating elements and remove.

Place all roller cam followers in order in special tool 11 4 480 .

Fig 2: Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Classification of roller cam followers on intake side:

The tolerance classes are marked according to the illustration in numbers from 1 to 5.

Standard: Number 3. standard.

Number 2. slow idle.

Number 4. fast idle.

In case of repair: rough idling speed.

Fig 3: Tolerance Marking On Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

Repair: 1

Number 1. lower engine speed in idle.

Number 5. higher engine speed in idle.

Install roller cam followers (1) on intake side.

NOTE: Ensure correct position of roller cam followers on hydraulic valve clearance compensating elements and intake valves.

Fig 4: Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Install roller cam followers (1) on exhaust side.

NOTE: Ensure correct position of roller cam followers on hydraulic valve clearance compensating elements and exhaust valves.

Fig 5: Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check function of DME; if necessary, readjust uniform mixture distribution.
