11 31 025 Removing and installing/replacing intake camshaft (B36A/B38A)

Special tools required:

• 11 4 480

Necessary preliminary tasks:

• Check TIMING
• Remove INTAKE ADJUSTER
• Remove INTERMEDIATE LEVER

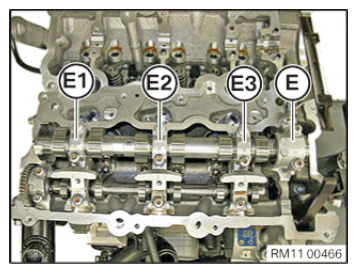

Fig 1: Intake Camshaft Bearing Cap Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws on bearing caps in the sequence 8 - 1  in half-turns.

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 480 .

Fig 2: Intake Camshaft Bearing Caps Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Take intake camshaft (1) out of cylinder head.

Fig 3: Turning Intake Camshaft Out Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten all bearing positions (1) with engine oil.

Fig 4: Locating Bearing Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Engage intake camshaft in cylinder head so that data code (1) is pointing upwards.

Fig 5: Positioning Intake Camshaft With Data Code Pointing Upward

Courtesy of BMW OF NORTH AMERICA, INC.

Coat intake camshaft and bearing shells with engine oil.

Position all bearing shells on cylinder head.

Fig 6: Intake Camshaft Bearing Cap Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screws in the sequence 1 - 8  in half-turns.

Tightening torque 11 31 1AZ .

Fig 7: Intake Camshaft Bearing Caps Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Check TIMING
