11 12 719 Grinding cylinder head lower face (B36A/B38A)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CYLINDER HEAD .

Check evenness of cylinder head lower face with a standard straightedge (1).

NOTE: Max. deviation from flatness (longitudinal) 0.10 mm

Fig 1: Checking Evenness Of Cylinder Head Lower Face With Standard Straightedge (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

Check evenness of cylinder head lower face with a standard straightedge (1).

NOTE: Max. deviation from flatness (transverse) 0.05 mm

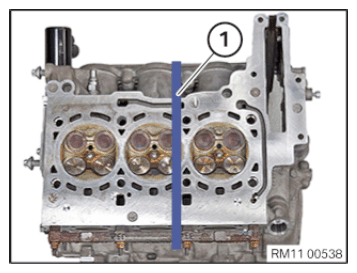

Fig 2: Checking Evenness Of Cylinder Head Lower Face With Standard Straightedge (Transverse)

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check cylinder head for WATERTIGHTNESS
