24 21 221 Replacing left radial shaft seal on differential (AISIN F21FT)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove left OUTPUT SHAFT .
Remove INTAKE FILTER HOUSING .

Removal:

Drive a hole into radial shaft seal using a center punch.

Fig 1: Driving Hole Into Radial Shaft Seal Using Center Punch

G11646065

Courtesy of BMW OF NORTH AMERICA, INC.

Attention !

Do not use a drill as shavings may result in transmission malfunction.

Thread special tool 23 0 490 into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).

Installation:

Fig 2: Driving Out Radial Shaft Seal With Impact Weight

G11646066

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal (1) with clean transmission oil.

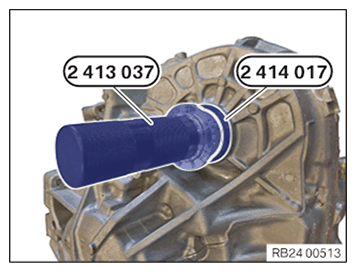

Drive in radial shaft seal with handle 2 413 037 and special tool 24 14 017 till the limit position.

Required follow-up work:

Check TRANSMISSION OIL LEVEL .
