31 60 003 Removing and installing/replacing left output shaft

Attention  !

Manual gearbox only:

• After each removal of the output shaft, the radial shaft seal in the transmission must be replaced.

Necessary preliminary tasks:

• Remove FRONT WHEEL .
• Manual gearbox only: Drain and catch transmission oil.

Removal:

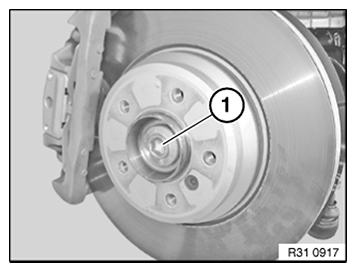

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever off protective cap (1).

Fig 2: Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolt (1), press brake pedal to floor for this purpose.

Turn steering wheel to left.

Pull output shaft (1) out towards front.

Fig 3: Pulling Output Shaft Out Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Securing Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Attention  !

Secure output shaft (1) against falling down.

Use a mounting lever (2) to lever the output shaft (1) out of the transmission.

Remove output shaft (1).

Installation:

Attention  !

Manual gearbox only:

• Replacing the radial shaft seal for the transmission.

Fig 5: Identifying O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Attention  !

With automatic transmission only:

• Lever out O-ring (1).

Part:  Replace O-ring.

• Insert new O-ring (1).

Fig 6: Checking Automatic Transmission Circlips Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Attention  !

Different types of output shafts fitted! Do not mix up circlips.

M Manual transmission

A Automatic transmission

Replace circlip.

Fig 7: Locating Transmission Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Inserting Assembly Protection Ring Into Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Insert assembly protection ring (1) into the radial shaft seal.

• Assembly protection ring (1) is supplied with the new radial shaft seal.

Make sure the tool fits over the lip of the radial shaft seal so there is no damage to sealing ring when the output shaft is inserted.

Insert output shaft (1) into gearbox.

• Manual gearbox only:

  Before the sealing surface is pushed into the radial shaft seal, remove assembly protection ring (2) by pulling the handle.

Slide output shaft into gearbox up to stop.

The output shaft must snap audibly into place.

Fig 9: Removing Assembly Protection Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Check for secure seat by levering.

Fig 10: Inserting Output Shaft From Front Into Pivot Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Turn steering wheel to left.

Insert output shaft (1) from the front into the pivot bearing.

• Pay attention to installation position of compression spring (2).
• Keep collar bolt and spur gearing of wheel bearing/output shaft clean and free from grease.

Attention  !

Following installation note for spur gearing must be observed without fail!

Fig 11: Compression Spring And Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Part:  Replace collar bolt and compression spring.

Tighten collar bolt (1) and compression spring by hand.

• Spur gearing of wheel bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth position)!

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

Once positive locking has been ensured, tighten screw connection to the specified torque.

Fig 13: Installing Front Gearing Of Wheel Bearing And Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 31 60 2AZ .

Fig 14: Attaching Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, attach protective cap (1).

Required follow-up work:

• Manual gearbox only: Add transmission oil.
• Check transmission for leaks.
• Install FRONT WHEEL .
