33 52 161 Replacing left or right support bearing for shock absorber

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Special procedure for EDC SHOCK ABSORBERS .

Necessary preliminary tasks:

Remove REAR SHOCK ABSORBER .

Removal:

Fig 1: Seal And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap (1).

Remove gasket (2).

Fig 2: Spring Strut Mounting, Nut, And Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tools 2 355 965 and 2 355 966 to undo the nut (1).

Remove spring strut mounting (2).

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber !

Installation:

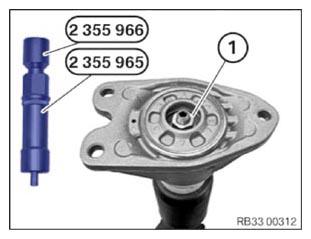

Fig 3: Special Tools And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Place new support bearing on shock absorber.

Screw on nut (1) and tighten with special tool 2 355 965 and 2 355 966 .

Replace nut (1).

Tightening torque 33 52 3AZ .

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber !

Replace gasket (2).

Place gasket (2) into position and align.

Check protective cap (1) for damage.

Replace protective cap (1) if necessary.

Mount protective cap (1).

Fig 4: Seal And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
