33 32 042 Replacing a rubber mount in trailing arm, front

Special tools required:

• 2 361 473
• 2 361 474
• 2 361 475
• 33 3 011
• 33 4 450
• 2 361 480
• 2 361 477

Necessary preliminary tasks:

• Remove TRAILING ARM .

Removal:

Slacken nut (1).

Pull out screw.

Remove the trailing arm bearing support (2).

Fig 1: Trailing Arm Bearing Support And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber mount with special tools 2 361 473 , 2 361 474 , 2 361 475 and 33 3 011 .

Attention  !

Risk of damage!

Position special tool 2 361 475 in such a way that the recesses on the special tool align with the notches (1) on the trailing arm.

Fig 2: Pulling Out Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When pulling in the rubber mount (1), the slot (2) has to be positioned in regards to the trailing arm as shown in the graphic.

Fig 3: Rubber Mount And Slot Position

Courtesy of BMW OF NORTH AMERICA, INC.

Pull together the rubber mount (1) using the special tool 33 4 450 .

Position the rubber mount (1) on the trailing arm.

• Make absolutely sure the rubber mount is in its proper installation position!

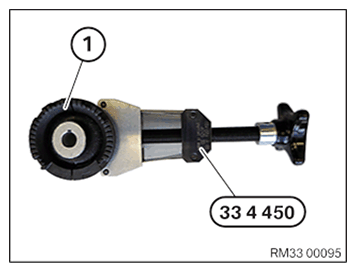

Fig 4: Rubber Mount Using Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tools 2 361 480 , 2 361 477 and 33 3 011 .

Pull special tool 2 361 480 over rubber mount (1).

Insert rubber mount (1) to the point where special tool 33 4 450 abuts with trailing arm.

Remove special tool 33 4 450 .

Insert rubber mount (1) to limit position.

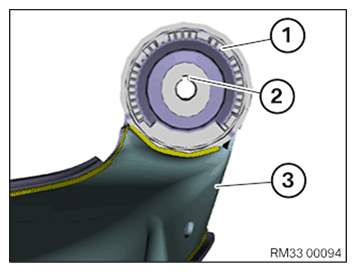

Fig 5: Inserting Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Position the trailing arm bearing support (2).

Replace nut (1).

Insert bolt and screw on nut (1).

Adjust the trailing arm bearing support to dimension A in relation to the trailing arm.

• Dimension A = 18 mm (± 3 mm)

Tighten nut (1).

Tightening torque 33 32 4AZ .

Fig 6: Adjusting Trailing Arm Bearing Support

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Carry out wheel alignment procedure. Refer to ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
