34 21 745 Replacing rear left or right brake caliper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read and comply with GENERAL INSTRUCTIONS .
Remove WHEEL .

Removal:

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Pressing Brake Pedal Down To Floor Using Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Fig 2: Locating Square Head Of Brake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect brake hose from brake line (1).

Disengage brake hose from brackets (1).

Detach brake hose (2) from brake caliper.

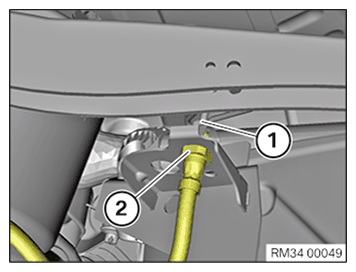

Fig 3: Locating Clamps Of Brake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining clip (1) in direction of arrow.

Disengage parking brake Bowden cable (2) from operating lever (3) at brake caliper.

Feed out parking brake Bowden cable (2) downwards.

Fig 4: Disengaging Parking Brake Bowden Cable Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew guide bolts (1).

If necessary, grip at hexagon head (2).

Remove brake caliper (3).

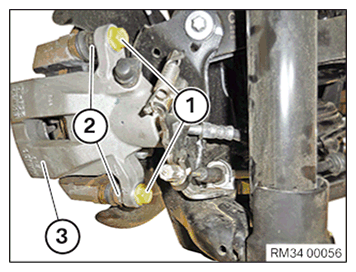

Fig 5: Locating Brake Caliper Guide Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fig 6: Locating Brake Caliper Guide Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Mount brake caliper (3).

Insert guide bolts (1) and tighten down.

If necessary, grip at hexagon head (2).

Replace guide bolts.

Tightening torque 34 21 3AZ .

Feed in parking brake Bowden cable (2) from below.

Mount locking clip (3).

Engage parking brake Bowden cable (2) in operating lever (1) on brake caliper.

Fig 7: Locating Parking Brake Bowden Cable Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure that the brake hose is routed correctly!

Mount brake hose (2) on brake caliper.

IMPORTANT: First tighten brake hose on brake caliper. Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

Tighten down brake hose (2).

Tightening torque 34 32 3AZ .

Insert brake hose in brackets (1).

Fig 8: Locating Clamps Of Brake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Fig 9: Mounting Brake Hose On Brake Line

Courtesy of BMW OF NORTH AMERICA, INC.

Mount brake hose on brake line (1) and tighten down.

Tightening torque 34 32 1AZ .

Remove pedal support.

Fig 10: Pressing Brake Pedal Down To Floor Using Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Bleed BRAKE SYSTEM .
