34 41 164 Removing and installing/replacing right parking brake Bowden cable

Necessary Preliminary tasks:

• Read and comply with GENERAL INSTRUCTIONS .
• Remove WHEEL .
• Remove the TANK COVER on the right.
• Release the heat shield.

Release gaiter on parking brake lever.

Release adjusting fixture (1) for parking brake Bowden cable.

Fig 1: Locating Adjusting Fixture Of Parking Brake Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining clip (1) in direction of arrow.

Disengage parking brake Bowden cable (2) from operating lever (3) at brake caliper.

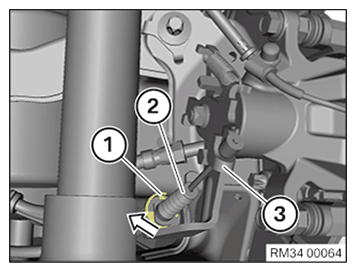

Fig 2: Detaching Retaining Clip Of Parking Brake Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out parking brake Bowden cable (2) downwards.

Unfasten left parking brake Bowden cable (1) in connector (2) in direction of arrow and detach.

Fig 3: Unfastening Left Parking Brake Bowden Cable In Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Detach parking brake Bowden cable from bracket (1).

Press down retaining lugs (2) and remove parking brake Bowden cable (3).

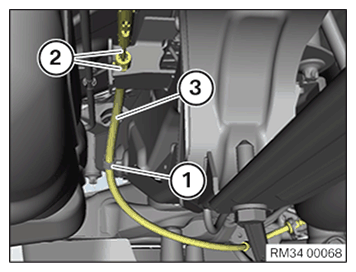

Fig 4: Locating Parking Brake Bowden Cable Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach parking brake Bowden cable to bracket (1).

Install parking brake Bowden cable (3) in holder.

Fig 5: Locating Parking Brake Bowden Cable Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining lugs (2) must be fully engaged.

Insert left parking brake Bowden cable (1) into connector (2) in direction of arrow and lock up to stop.

Fig 6: Inserting Left Parking Brake Bowden Cable Into Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in parking brake Bowden cable (2) from below.

Mount locking clip (3).

Engage parking brake Bowden cable (2) in operating lever (1) on brake caliper.

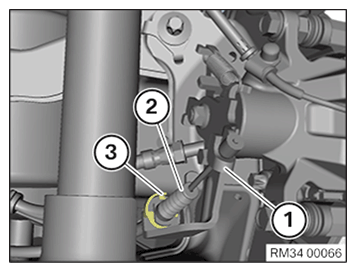

Fig 7: Parking Brake Bowden Cable, Operating Lever, And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Adjust PARKING BRAKE .
