51 75... Removing and installing/replacing tank cover on left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Right side:

Unscrew the screws (1).

Remove tank cover (2).

Fig 1: Locating Tank Cover And Screws (Right Side)
G11774795Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Unscrew the screws (1).

Remove tank cover (2).

Fig 2: Locating Tank Cover And Screws (Left Side)
G11774796Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Right side:

Put on tank cover (2).

Tighten down screws (1).

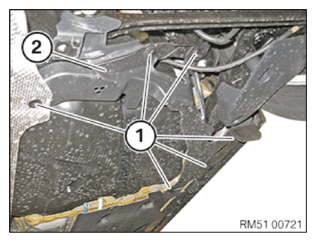

Fig 3: Locating Tank Cover And Screws (Right Side)
G11774797Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Put on tank cover (2).

Tighten down screws (1).

Fig 4: Locating Tank Cover And Screws (Left Side)
G11774798Courtesy of BMW OF NORTH AMERICA, INC.
