34 41 162 Removing and installing/replacing left parking brake Bowden cable

Necessary Preliminary tasks:

• Read and comply with GENERAL INSTRUCTIONS .
• Remove WHEEL .
• Remove the TANK COVER on the left and right.
• Release the heat shield.

Release gaiter on parking brake lever.

Release adjusting fixture (1) for parking brake Bowden cable.

Fig 1: Locating Adjusting Fixture Of Parking Brake Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

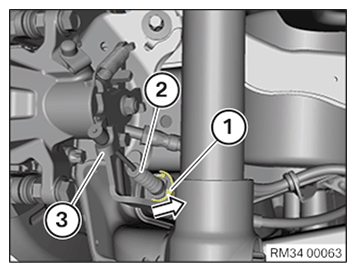

Detach retaining clip (1) in direction of arrow.

Disengage parking brake Bowden cable (2) from operating lever (3) at brake caliper.

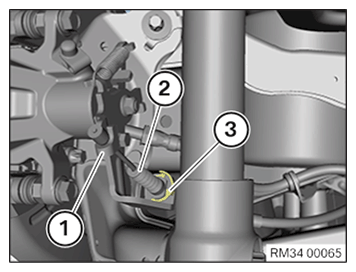

Fig 2: Disengaging Parking Brake Bowden Cable Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out parking brake Bowden cable (2) downwards.

Unfasten left parking brake Bowden cable (1) in connector (2) in direction of arrow and detach.

Fig 3: Unfastening Left Parking Brake Bowden Cable In Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Feed deep offset ring spanner (1) 9 AF into open end of left parking brake Bowden cable.

Press down barbs in direction of arrow.

Remove parking brake Bowden cable at middle (2) in direction of arrow.

Fig 4: Removing Parking Brake Bowden Cable At Middle

Courtesy of BMW OF NORTH AMERICA, INC.

Detach parking brake Bowden cable from bracket (1).

Press down retaining lugs (2) and remove parking brake Bowden cable (3).

Fig 5: Bowden Cable, Bracket, And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach parking brake Bowden cable to bracket (1).

Install parking brake Bowden cable (3) in holder.

Retaining lugs (2) must be fully engaged.

Fig 6: Bowden Cable, Bracket, And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Press down barbs in direction of arrow.

Insert parking brake Bowden cable at middle (2) in direction of arrow into holder (2) and lock.

Fig 7: Inserting Parking Brake Bowden Cable Into Holder And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Insert left parking brake Bowden cable (1) into connector (2) in direction of arrow and lock up to stop.

Feed in parking brake Bowden cable (2) from below.

Fig 8: Inserting Left Parking Brake Bowden Cable Into Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Mount locking clip (3).

Engage parking brake Bowden cable (2) in operating lever (1) on brake caliper.

Fig 9: Locating Parking Brake Bowden Cable Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Adjust PARKING BRAKE .
