34 32 980 Replacing rear left or right brake hose
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read and comply with GENERAL INSTRUCTIONS .
Removal:
Press brake pedal down to floor and secure with pedal support.
NOTE:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
IMPORTANT:

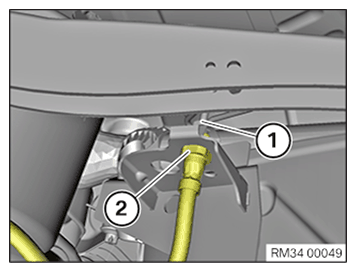

Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Disconnect brake hose from brake line (1).

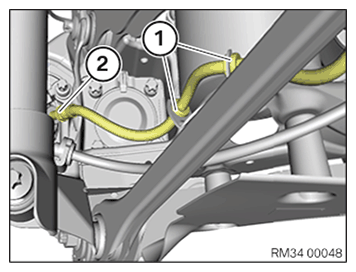

Disengage brake hose from brackets (1).
Detach brake hose (2) from brake caliper.
Installation:
IMPORTANT:
Make sure that the brake hose is routed correctly!
Mount brake hose (2) on brake caliper.
IMPORTANT:
First tighten brake hose on brake caliper. Never
twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
Tighten down brake hose (2).
Tightening torque 34 32 3AZ .
Insert brake hose in brackets (1).
IMPORTANT:
Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Mount brake hose on brake line (1) and tighten down.
Tightening torque 34 32 1AZ .
Remove pedal support.
Required follow-up work:
- Bleed BRAKE SYSTEM .
