65 50 057 Removing and installing/replacing Central Information Display (CID)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Remove CENTRAL INSTRUMENT CLUSTER

Removal:

Release screws (1).

Unlock catch (2).

Remove central instrument (3).

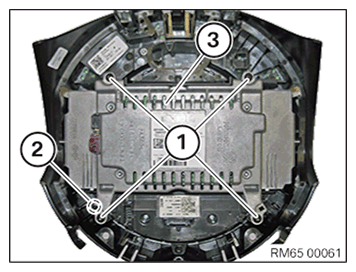

Fig 1: Locating Central Instrument Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position central instrument (3).

Latch mechanism (2) must lock correctly.

Tighten down screws (1).

Fig 2: Locating Central Instrument Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
