65 81 060 Removing and installing/replacing outside temperature sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

Removal:

Turn outside temperature sensor (1) by 90° in direction of arrow.

Remove outside temperature sensor (1) from bumper panel (2).

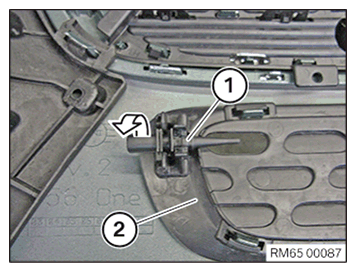

Fig 1: Removing Outside Temperature Sensor From Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

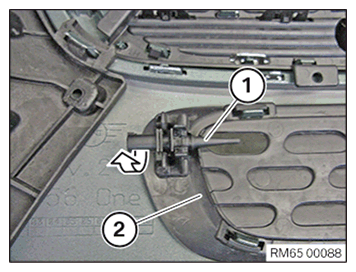

Fig 2: Turning Outside Temperature Sensor By 90°

Courtesy of BMW OF NORTH AMERICA, INC.

Insert outside temperature sensor (1) correctly into bumper panel (2).

Turn outside temperature sensor (1) by 90° in direction of arrow.
