52 13... Remove and install/replace seat height adjustment lever on left or right front seat (from 07/2014)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:
  • Microencapsulated screws must be coated with Loctite if they are to be reused
  • Screw connection must be completed within 20 min. (start of harden)
  • Microencapsulated screws must not be retightened.
  • Thread of nut must be cleaned beforehand in event of repeated use

Removal:

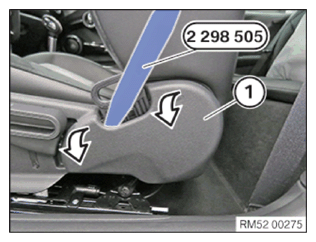

Unclip cover (1) with special tool 2 298 505 .

Fig 1: Removing Cover With Special Tool (2 298 505)
G11774799Courtesy of BMW OF NORTH AMERICA, INC.

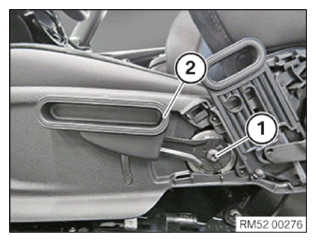

Release screw (1) and remove lever (2).

Fig 2: Identifying Lever And Screw
G11774800Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position lever (2) and tighten screw (1).

Tightening torque 52 10 3AZ .

Fig 3: Identifying Lever And Screw
G11774801Courtesy of BMW OF NORTH AMERICA, INC.

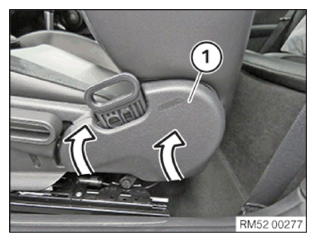

Insert cover (1) at bottom and engage in upwards direction.

Fig 4: Installing Cover
G11774802Courtesy of BMW OF NORTH AMERICA, INC.
