65 82 300 Removing and installing (replacing) Touchbox controller control unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LEFT SIDE TRIM PANEL

REMOVAL:

Disconnect plug connection (1).

Loosen the screws (2).

Remove control unit (3).

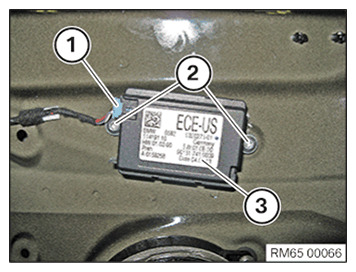

Fig 1: Locating Touchbox Controller Control Unit Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .

INSTALLATION:

Position control unit (3).

Tighten down screws (2).

Join plug connection (1).

Fig 2: Locating Touchbox Controller Control Unit Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.
