11 37 005 Removing and installing/replacing eccentric shaft (B48, B46)

Special tools required:

• 11 4 480

Necessary preliminary tasks:

• Remove INTERMEDIATE LEVER
• Remove INTAKE CAMSHAFT
• Remove SERVOMOTOR FOR ECCENTRIC SHAFT

Removal:

Release screws (1).

Set down the bearing cap neatly in special tool 11 4 480 .

Release all screws (2) evenly.

Set down all bearing supports neatly in special tool 11 4 480 .

Fig 1: Bearing Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intermediate shaft (1) from cylinder head.

Fig 2: Removing Intermediate Shaft From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check all needle bearings (1) of eccentric shaft (2) for ease of movement.

Fig 3: Needle Bearings And Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Guide Bushes

Courtesy of BMW OF NORTH AMERICA, INC.

Clean all bearing positions (1) and coat with engine oil.

Fig 5: Bearing Position

Courtesy of BMW OF NORTH AMERICA, INC.

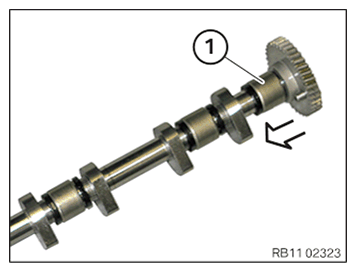

Before assembly of the eccentric shaft move the needle bearing (1) in the direction of the arrow up to the limit position.

Fig 6: Moving Needle Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Oil the needle bearings of eccentric shaft (1).

Mount eccentric shaft on cylinder head.

Mount bearing shell (2) and bearing supports (3) on cylinder head.

Fig 7: Eccentric Shaft, Bearing Shell And Bearing Supports

Courtesy of BMW OF NORTH AMERICA, INC.

The bearing cap (1) is provided with a limit position.

Fig 8: Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screws (1 and 2) evenly.

Tightening torque 11 37 3AZ .

Fig 9: Bearing Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.
