63 99 072 Replace halogen bulb for left/right headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Removal:

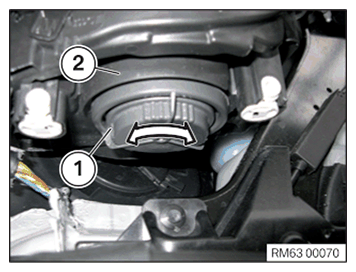

Release protective cap (1) by turning counter clockwise and remove from headlight (2).

Fig 1: Releasing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

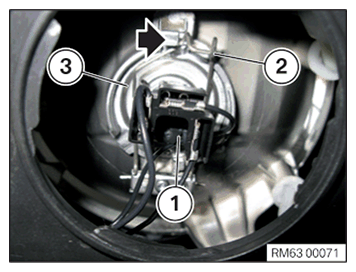

Disconnect connector (1).

Unlock wire spring clip (2) and swivel downwards.

Pull halogen bulb for headlight (3) out of headlight.

Fig 2: Headlight, Wire Spring Clip And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join halogen bulb for headlight (3) in headlight. Switch wire spring clip (2) upwards and lock. Connect the plug (1).

NOTE: Make sure halogen bulb for headlight (3) is correctly fitted.
Make sure the wire spring clip (2) is correctly locked.

Fig 3: Headlight, Wire Spring Clip And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check seal.
Comply with instructions for REPLACING THE PROTECTIVE CAP , replace protective cap (1) if required.
Protective cap (1) must be correctly engaged.

Join protective cap (1) in headlight (2), and turn clockwise up to limit position.

Fig 4: Releasing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Recommendation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
