63 10 004 Adjusting headlights

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Comply with TEST PRECONDITIONS for headlight adjustment.

Carry out headlight adjustment at adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

Adjusting screw primarily for vertical adjustment
Adjusting screw primarily for lateral adjustment

After headlight adjustment:

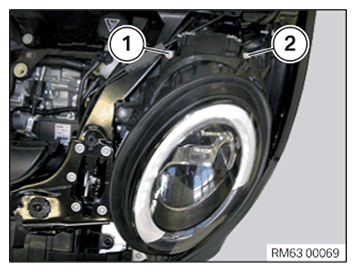

Fig 1: Headlight Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Perform reference run. For this purpose, switch off and on the headlights. Check again headlight adjustment.
