63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove headlight. See REMOVING HEADLIGHT or REMOVING HEADLIGHT - LED TECHNOLOGY .

NOTE: Damaged holders (1, 2, 3, 4) can be replaced with the repair kit.

Replacement of headlight is not required!

Holders from the repair kit are marked with an "L" for the left or "R" for the right side.

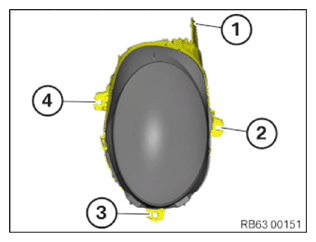

Fig 1: Locating Headlight Holders Damage (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

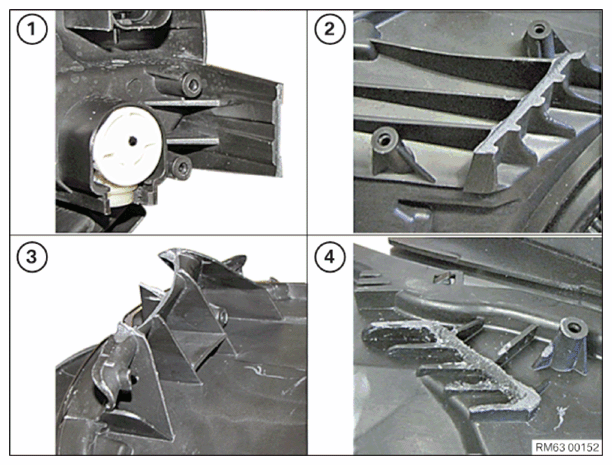

Fig 2: Locating Headlight Holders Damage (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove damaged holders (1, 2, 3, 4) as shown above.

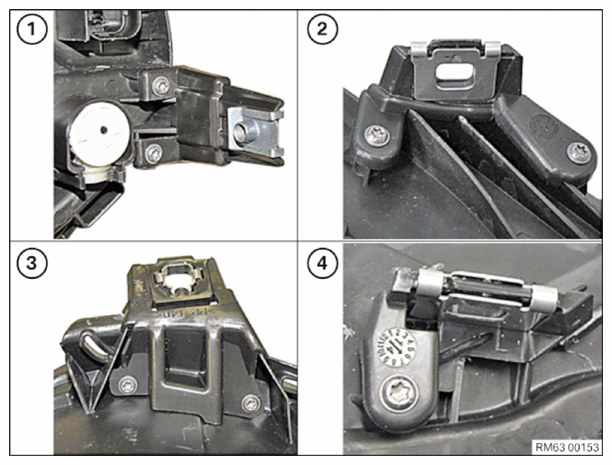

Fig 3: Removing Damaged Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder from repair kit (1, 2, 3, 4) as illustrated and tighten using the enclosed screws.

After the repair:

ADJUST HEADLIGHTS
