64 11 376 Removing and installing (replacing) control panel for heating and air conditioning system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CENTRAL INSTRUMENT

Removal:

Disengage control panel for heating and air conditioning system (1) towards the front.

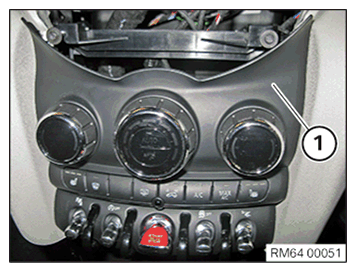

Fig 1: Heating And Air-Conditioning System Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .

Installation:

NOTE: Clamps (1) must not be damaged or missing.

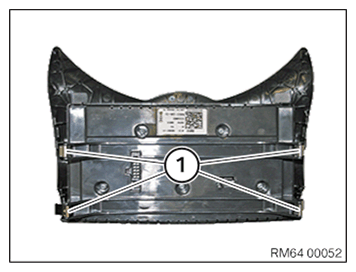

Fig 2: Control Panel Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Engage control panel of heating and air conditioning system (1) to the rear.

Fig 3: Heating And Air-Conditioning System Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.
