Removing and installing/replacing head-up display (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Observe the INFORMATION on protection from electrostatic discharge.

Attention!

Comply with NOTES on handling optical fibers.

Risk of damage!

Do not hold the Head-Up Display by the heat sink.

If possible, do not touch the sound insulation on the Head-Up Display.

Do not touch the glass pane of the Head-Up Display if possible.

Preliminary work needed:

Remove instrument PANEL TRIM .

Removal:

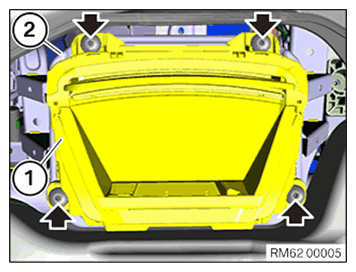

Loosen screws.

Carefully feed Head-Up Display (1) out of support (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

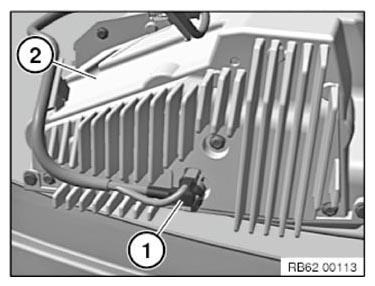

Unlock connector (1) on underside of head-up display (2) and disconnect.

Remove head-up display (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (1) on underside of head-up display (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure installation position of Head-Up Display (1) relative to support (2) is correct.

Join Head-Up Display (1) with support (2).

Tighten the screws.

Tightening torque 62 30 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install instrument PANEL TRIM .

Replacement:

Carry out vehicle PROGRAMMING/ENCODING .
