65 82 300 Removing and installing (replacing) Touchbox controller control unit (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Preliminary work needed:

Remove left side TRIM PANEL .

REMOVAL:

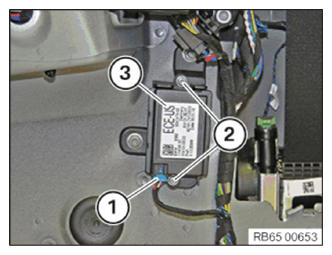

Disconnect connector (1).

Unscrew the screws (2).

Remove control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING AND CODING .

INSTALLATION:

Position control unit (3).

Tighten down screws (2).

Join the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install left side TRIM PANEL .
