Removing and installing (replacing) telematics platform, low (Cooper Convertible )

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove GLOVE COMPARTMENT .

Removal:

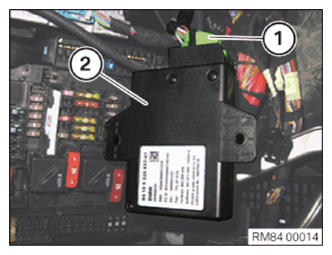

Release detents and pull telematics platform, low (1) out of holder (2).

Disconnect connector (1).

Remove telematics platform, low (2).

Installation:

Connect connector (1) to telematics platform, low (2).

NOTE: Ensure correct locking.

Slide telematics platform, low (1) into holder (2).

NOTE: Ensure correct locking.

Required follow-up work:

Install GLOVE COMPARTMENT .
