REP-TAT-P-2461-01 Removing the control unit (8-speed, AISIN GA8F22AW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Refer to DISCONNECTING THE BATTERY GROUND LEAD
Refer to REMOVING INTAKE PORT
Refer to REMOVING INTAKE SILENCER HOUSING

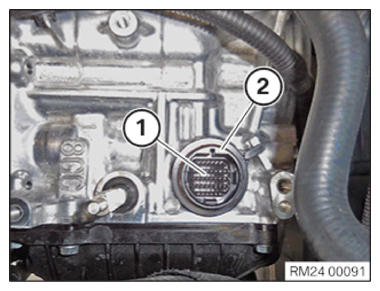

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Before removing the control unit (3) , rotate the lever (1) so that the arrows (2) face each other.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screws (1) of the control unit (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the pins (1) of the sealing sleeve (2) are not affected.

Courtesy of BMW OF NORTH AMERICA, INC.
