Removing and installing/replacing radial shaft seal for gearshift shaft (6-speed, AISIN GA6F21AW)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 4 290

Necessary preliminary work:

Remove THROTTLE VALVE ASSEMBLY .
Remove the EGS CONTROL UNIT .

Removal:

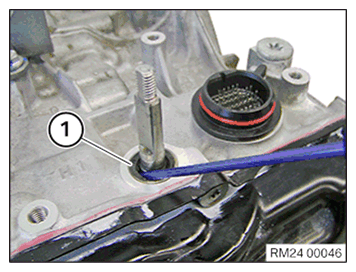

Lever out sealing ring (1) with a screwdriver.

IMPORTANT: Mask off the screwdriver tip.
The surfaces of the sealing ring making contact with the gearshift shaft and the transmission must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat sealing lips of new radial shaft seal with clean transmission oil.

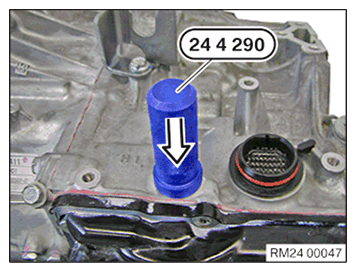

Drive in radial shaft seal with special tool 24 4 290 until it stops.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the EGS CONTROL UNIT .
Install THROTTLE BODY .
