63 99 451 Replacing light bulb for trunk compartment lighting (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling LIGHT BULBS (INTERIOR LIGHTS) .
Preliminary work needed:
- Remove TRUNK COMPARTMENT LIGHT .
NOTE:
LED technology lights must be completely replaced.
Removal:
Release headlight diffuser cover (1) at detents (2) on both sides.
Remove headlight diffuser cover (1) from trunk compartment light (3) in arrow direction.

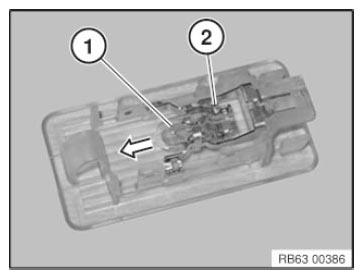

Push out and remove the bulb (1) from the bulb socket with a suitable tool (e.g. screwdriver with 3 mm blade) in the direction of the arrow.
Installation:
Join the bulb (1) and the bulb socket in the opposite direction to the direction of the arrow.

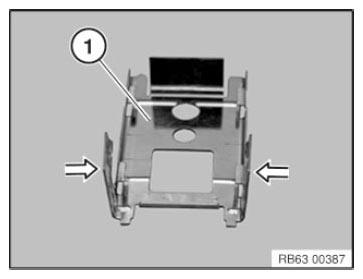

Check headlight diffuser cover (1) before lining.
If necessary, carefully press together both side lugs a little in arrow direction.
Join lens cover (1) to trunk compartment light (3) opposite to arrow direction.
NOTE:
Make sure lens cover (1) is correctly seated and engaged (2).
Required follow-up work:
- Install TRUNK COMPARTMENT LIGHT .
