63 11 760 Replacing FLEL control unit (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Preliminary work needed:

Remove HEADLIGHT - LED TECHNOLOGY .

Removal:

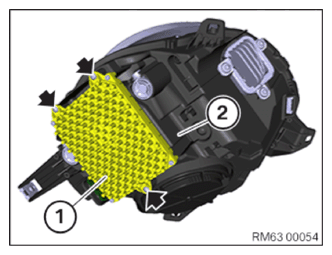

Loosen screws.

Remove front light electronics control unit (1) from headlight (2).

G13799023

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Gasket (1) for front light electronics control unit (2) must not be damaged and must be installed free from grease.

G11649978

Courtesy of BMW OF NORTH AMERICA, INC.

Insert front light electronics control unit (1) into headlight (2).

Tighten the screws.

Tightening torque 63 12 3AZ .

NOTE: Ensure front light electronics control unit (1) is correctly fitted.

G11649977

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install HEADLIGHT - LED TECHNOLOGY - .

Replacement only:

Carry out PROGRAMMING/CODING .
