Replacing rear (EDC) left or right shock absorber (Cooper Convertible)
Special tools required:
- 33 0 040
- On replacement of shock absorber, replace additional absorber!
- In F60, F54 vehicles up to 06/2017 the shock absorbers must always be exchanged in pairs (damper coordination has changed)!
Preliminary work needed:
- Remove REAR SHOCK ABSORBER .
Removal:

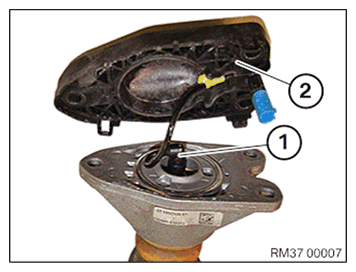

Release adapter plate (2) from support bearing.
Disconnect connector (1) from shock absorber.
Remove adapter plate (2).

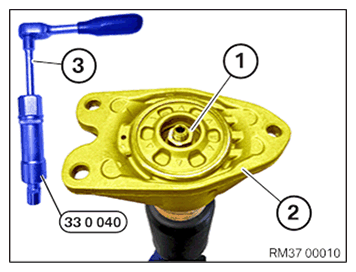

Release nut (1) with special tool 33 0 040, reversible ratchet with extension and socket SW10.
Remove spring strut mounting (2).
Remove gasket (2).
Installation:
Where applicable and if available, remount the stone chip guard (1).
Installation note:
Check stone chip guard and replace if necessary.

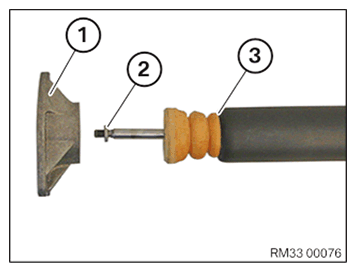

Part: Replace auxiliary damper with protective tube (3).
Connect additional absorber with protective tube (3) onto shock absorber.
Connect gasket (2) and support bearing (1).
Part: Replace nut (1).
Tighten down nut (1) with special tool 33 0 040, reversible ratchet with extension, socket SW10 and torque wrench with ring wrench attachment SW21.
Tightening torque 33 52 3AZ .
Impact screwdrivers are prohibited!
Risk of damage inside the shock absorber!
Installation note:

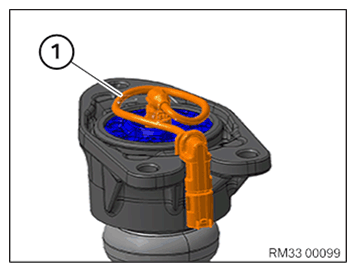

Make sure cable routing (1) is in the correct position. See figure!
Connect connector (1) to shock absorber.
Fit adapter plate (2) on support bearing and engage.
Required follow-up work:
- Install REAR SHOCK ABSORBER .
